Neomow L Series - How to Replace the Blades

Important Notes:

• We recommend replacing the blades and screws every 3–6 weeks to ensure safe operation and optimal mowing performance. Always replace all five blades and their corresponding screws at the same time.
• Wear heavy-duty protective gloves when inspecting, handling, or replacing the blades.
• Only use blades and screws recommended by HOOKII. Using incompatible parts may result in improper installation or serious safety hazards. HOOKII shall not be held responsible for safety incidents resulting from the use of incompatible blades or screws.
• Do not reuse old screws. Worn or aged screws may compromise blade security and cause serious safety hazards.
• Do not use power tools, such as electric screwdrivers or drills, to replace the blades. Power tools may cause the blades to rotate unexpectedly, resulting in hand injuries.

Steps:

1. Press and hold the power on/off button until the LOGO light goes out and the lawn mower is shut down.

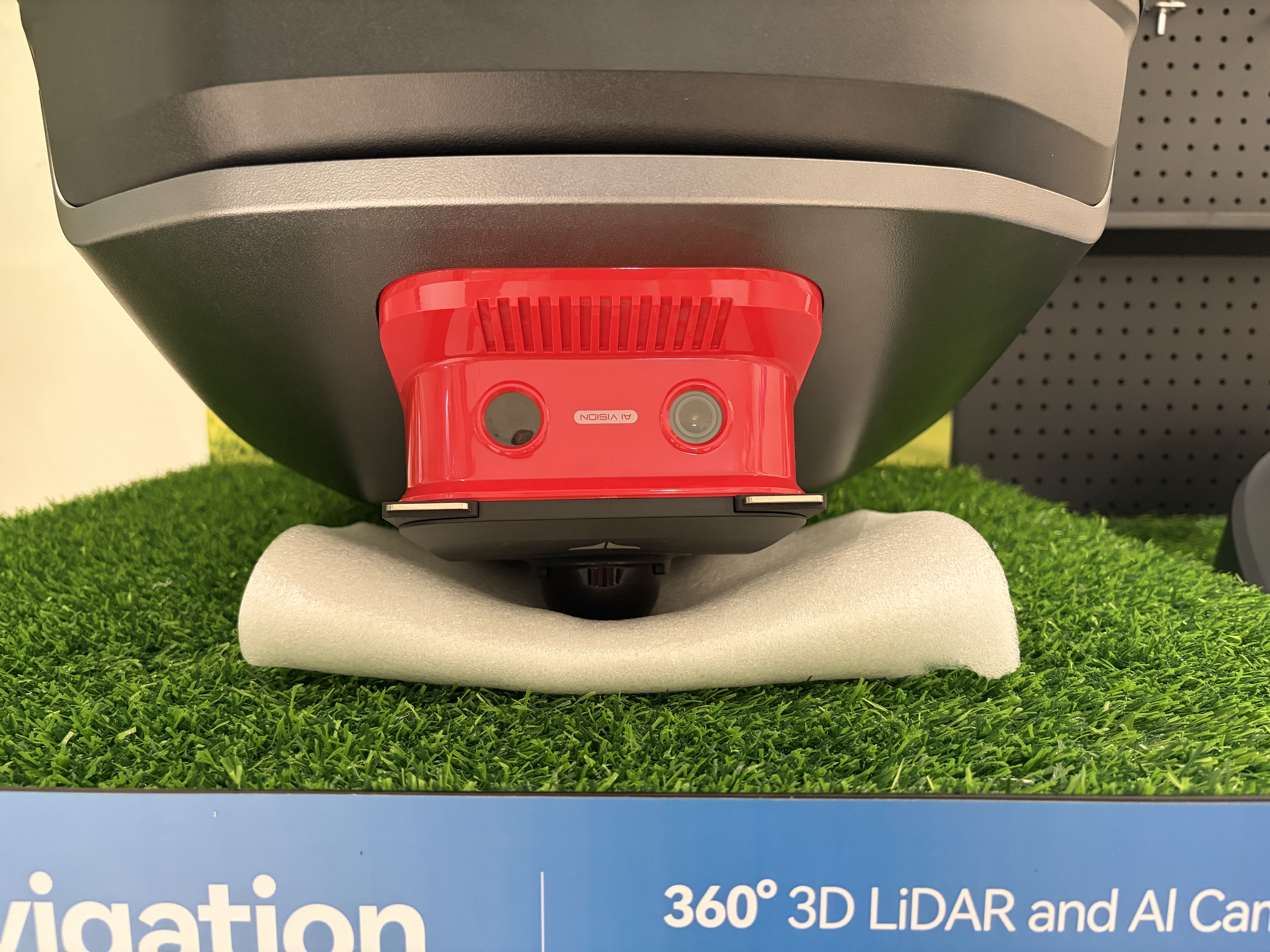

2. For easier access, carefully turn the mower upside down. Before doing so, place a layer of foam padding or a soft cloth on your workbench or the floor to protect the LiDAR sensor from scratches or damage.

3. Loosen the five screws using a Phillips screwdriver.
4. Remove screws and blades.
