How to Check Whether the Blade Disc Motor Height Adjustment Is Working Properly

If you suspect that the blade disc is not raising or lowering correctly, you can perform the following check:

Step 1: Switch the Mower to Manual Mode

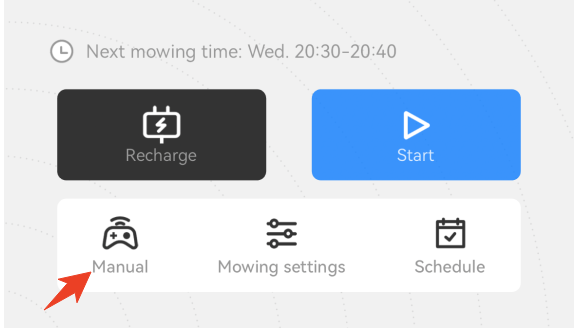

Open the HOOKII APP and switch the mower to Manual Mode.

Step 2: Start the Blade Disc and Adjust the Cutting Height

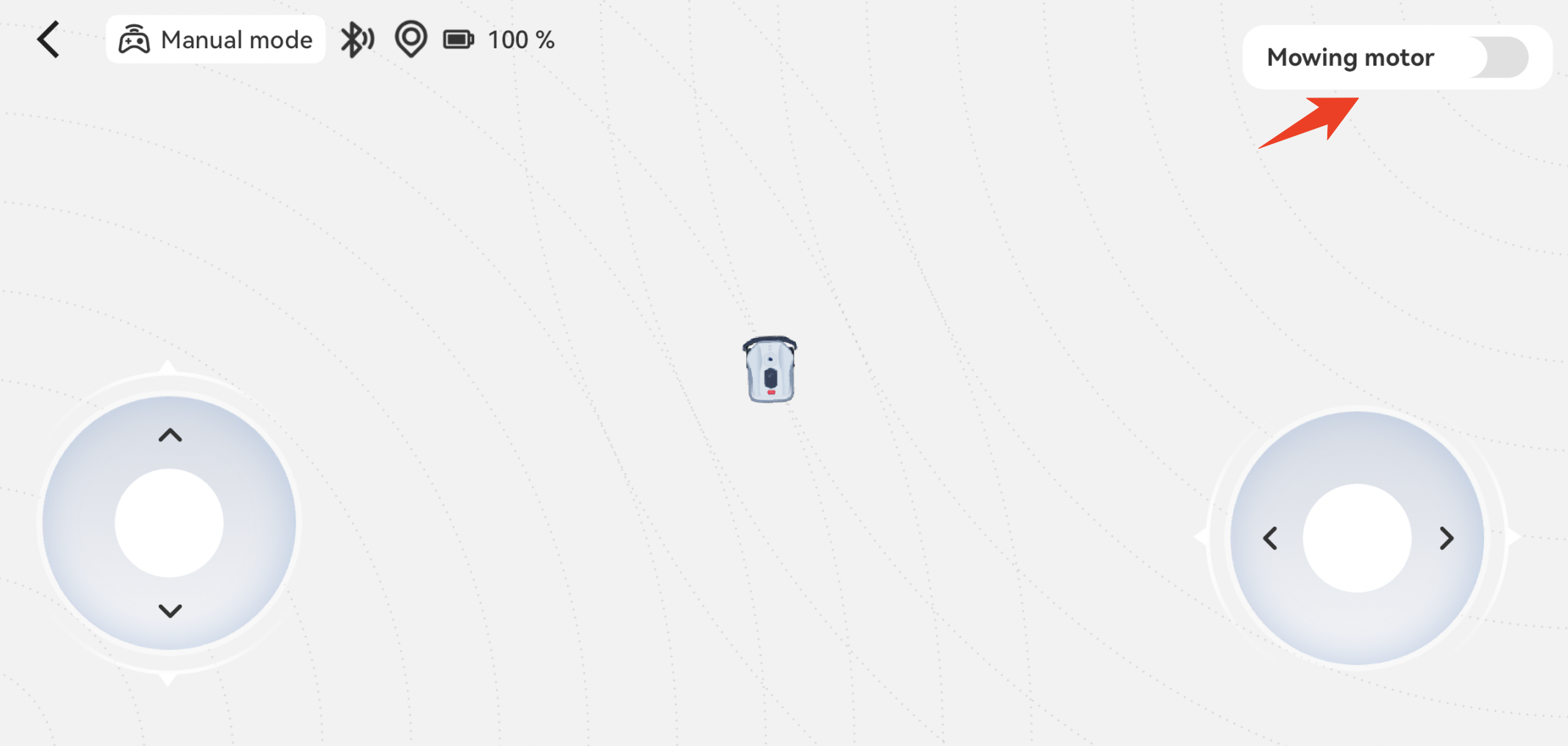

Turn on the blade disc motor and set the cutting height to 30 mm.

Observe the blade disc from the side of the mower and check whether it moves downward as the cutting height is adjusted.

If the blade disc lowers normally, the height adjustment mechanism is functioning properly.

Safety Notice

The blade disc will rotate during this test. Keep a safe distance from the mower and never place your hands or any objects near the rotating blades.

For your safety, observe the blade disc from the side of the mower only and wear appropriate protective equipment if necessary.
