The charging station can be installed either indoors or outdoors. Please follow the steps below for proper installation to ensure safe and efficient operation.

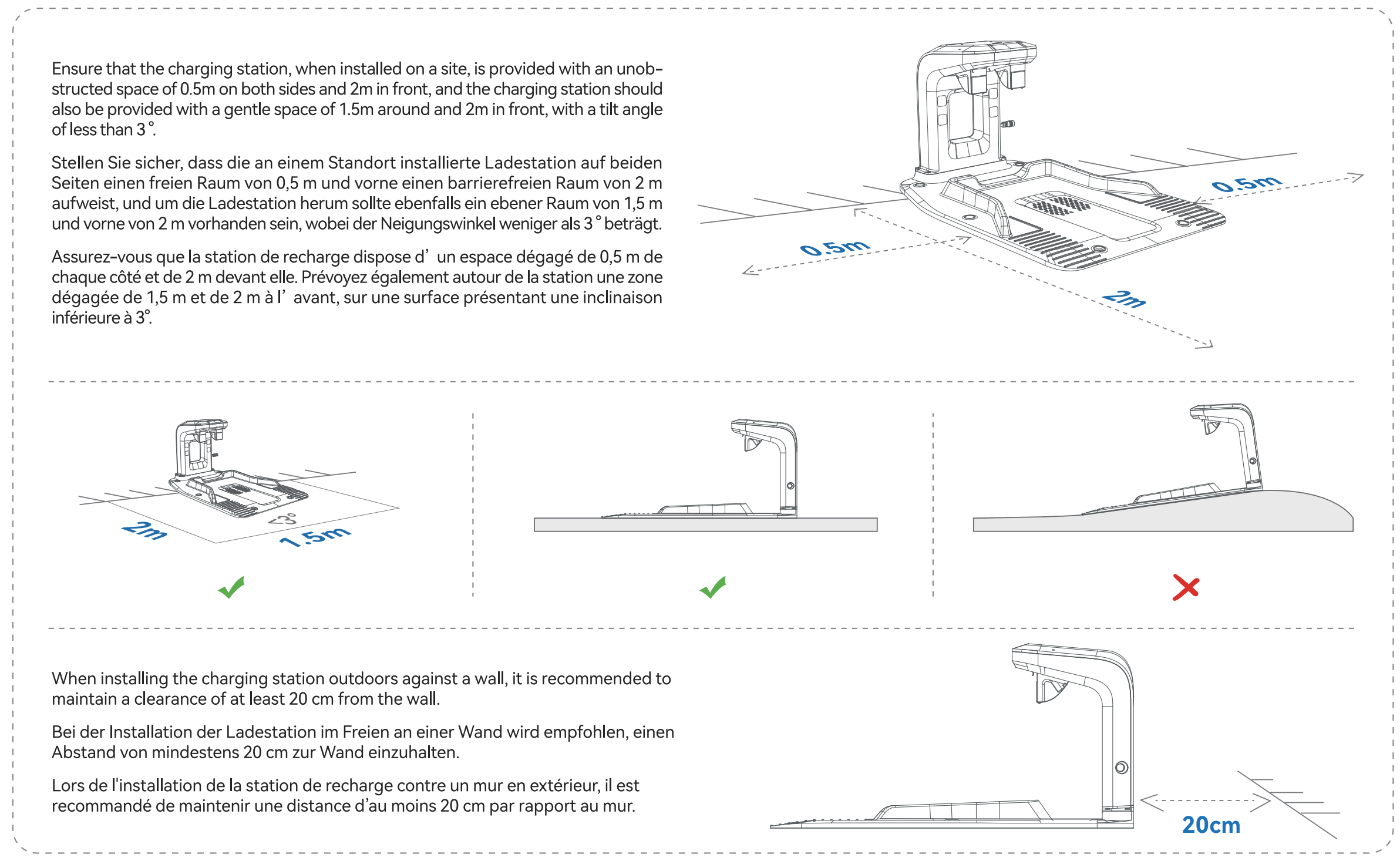

Step 1: Choose a Suitable Location
Keep 0.5 m of clearance on both sides of the charging station.
Keep 2 m of clearance in front of the charging station.
If placing against a wall, ensure at least 20 cm of space between the back of the station and the wall.
Ensure the charging station is level with the ground, with a tilt of no more than 3° in any direction.
- Before indoor installation, clean the floor to ensure it is clean and free of debris. For outdoor installation, avoid soft or unstable ground that may sink.

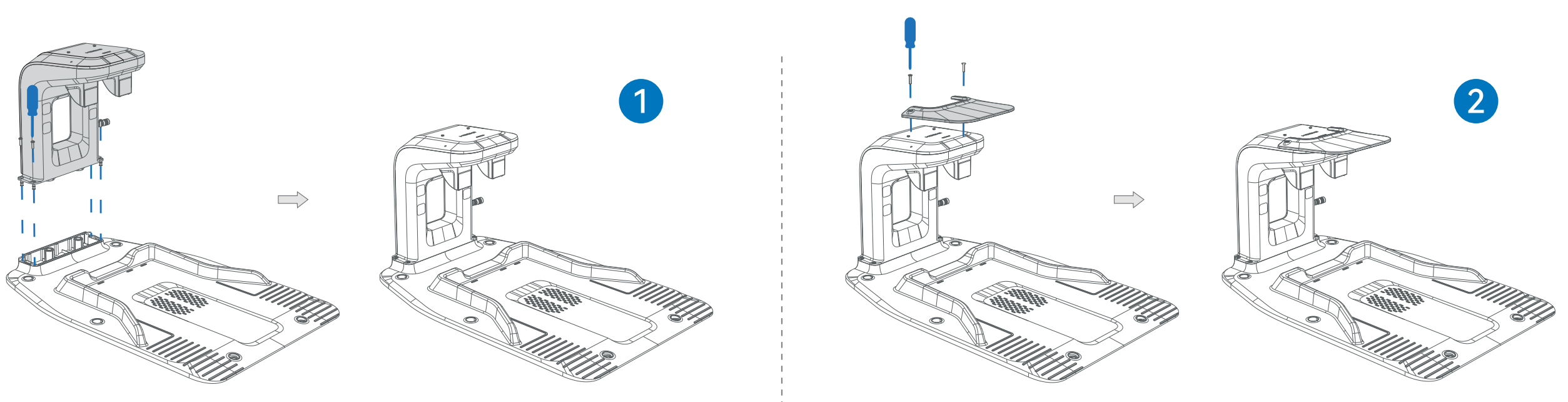

Step 2: Assemble the Charging Station
- Assemble the upper part and base of the charging station.
- Fit the canopy onto the top of the charging station, and secure it with screws using a Phillips screwdriver.

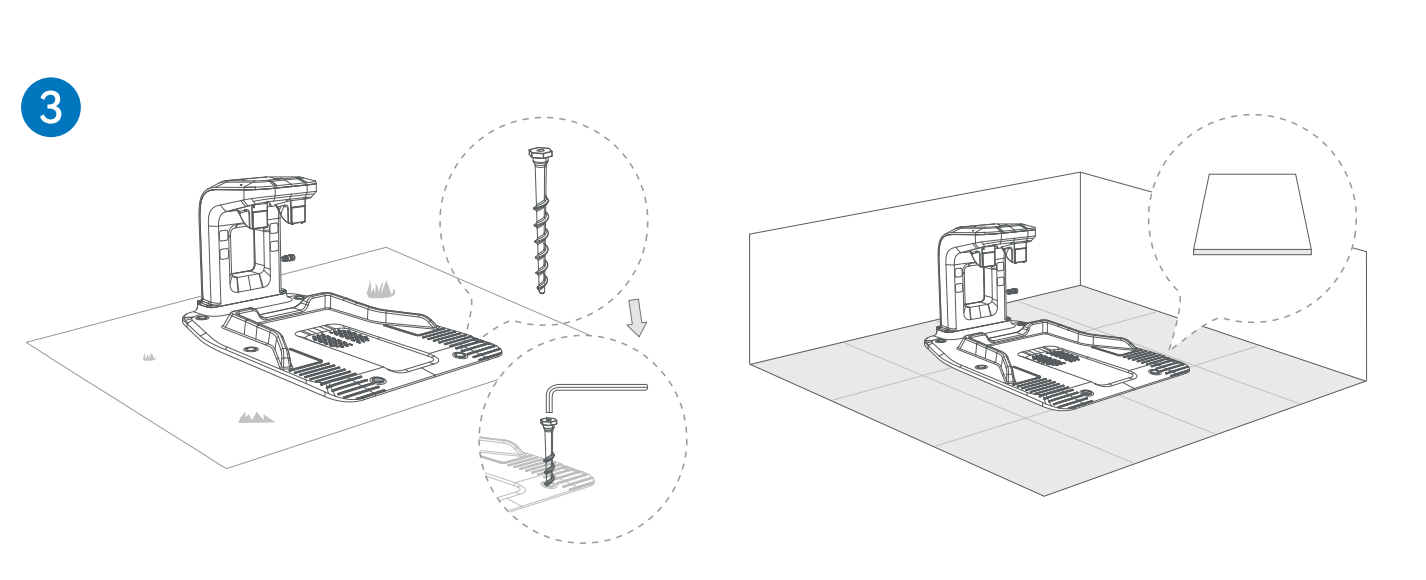

Step 3: Secure the Charging Station
Indoor installation:
Use tape to fix the station’s base to a hard cement surface.
Outdoor installation:
Use ground nails to secure the station to the lawn.

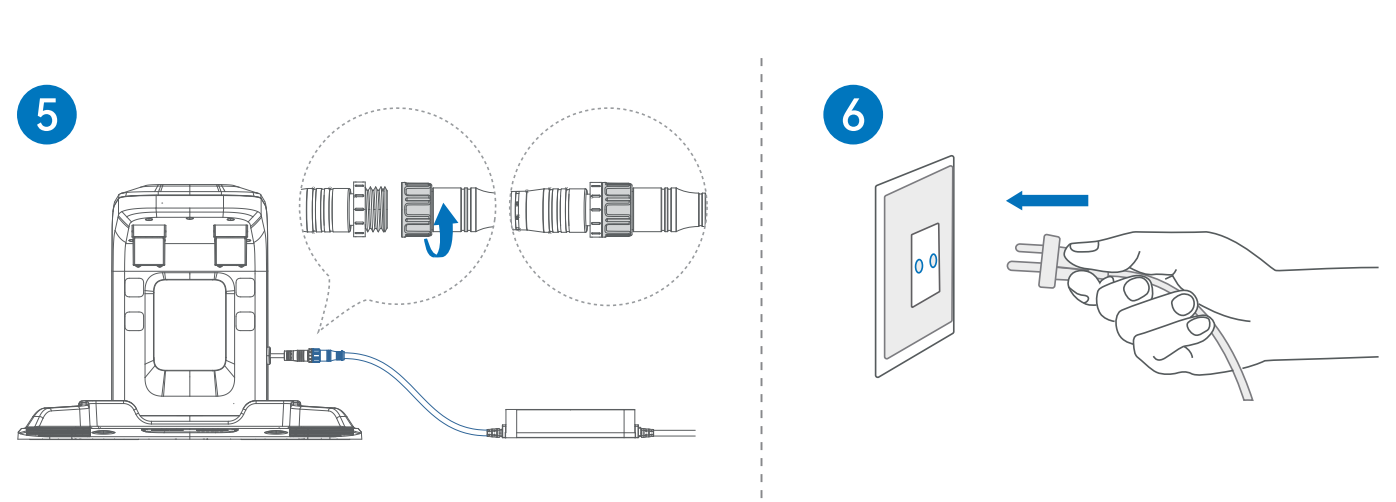

Step 4: Connect the Cables and Power On the Charging Station
- Connect the power port of the charging station to the adapter cable until the two parts
lock together. - Insert the power plug into a wall socket.

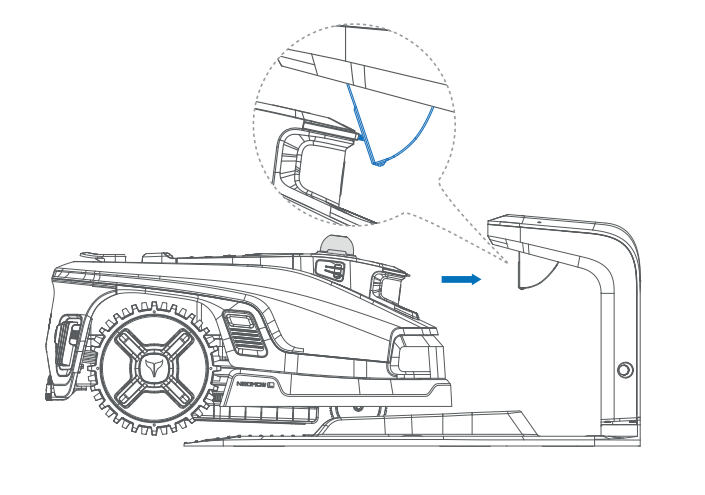

Step 5: Place the Mower on the Charging Station
- Place the mower on the charging station.

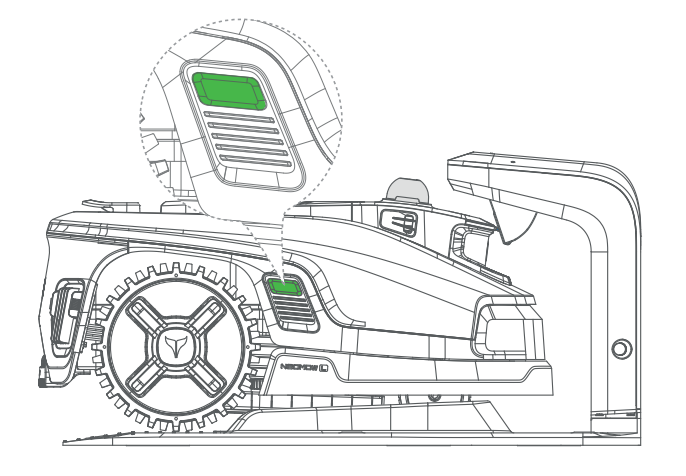

- Make sure the mower is properly connected to the charging station and powered on.
Important Notes
If you need to move the charging station, the new location must also meet the above requirements.
Move distance < 20 cm: You can move the station directly.
Move distance > 20 cm: After moving, redraw the recharge path on the map, otherwise the mower cannot return to the station.
